FR180
LOVOL
1、 Core performance advantages
Strong power and adaptability to geological formations

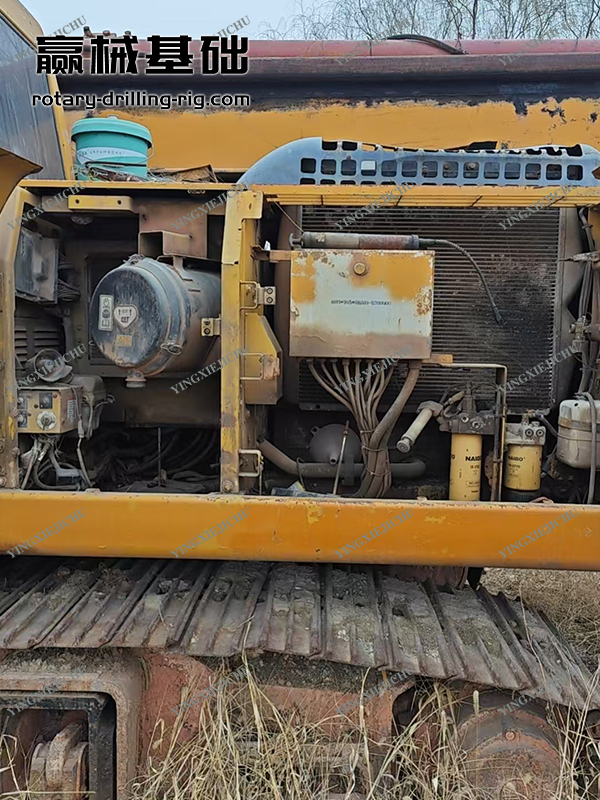

Standard Caterpillar C7/Cummins QSB6.7 engine, power 187-194kW, sufficient torque reserve, stable in high-altitude and high-temperature conditions.

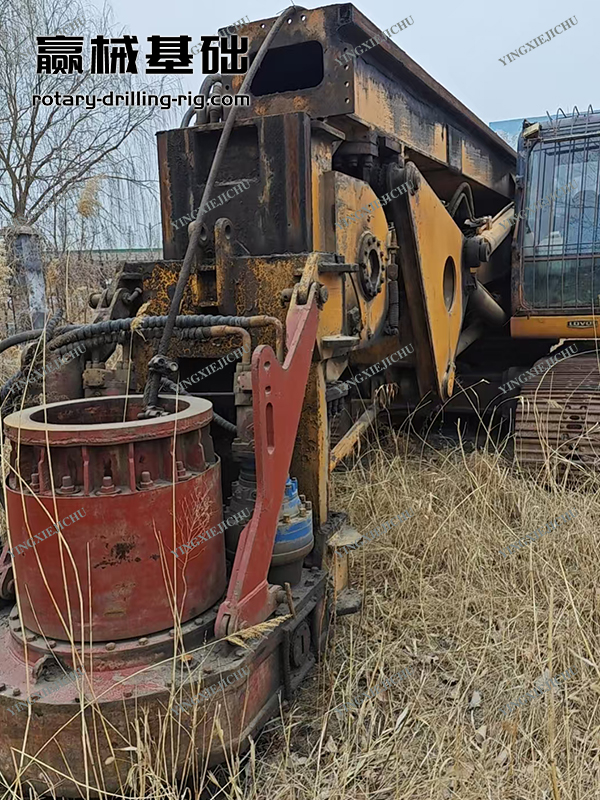

180kN · m high torque power head, wide speed range of 7-27r/min, combined with high pressure (150-180kN), strong penetration and fast pore formation in complex formations such as gravel, weathered rock, and hard clay.
The main winch has a lifting force of 180kN and a high speed of 70m/min, with a combined design for lowering and lowering, resulting in high efficiency in lifting and drilling.
Stable and reliable, durable under heavy loads
Fully hydraulic telescopic track chassis, adjustable width 2960-4300mm, reasonable grounding pressure ratio, good stability in mountainous areas, soft foundations, and narrow fields.

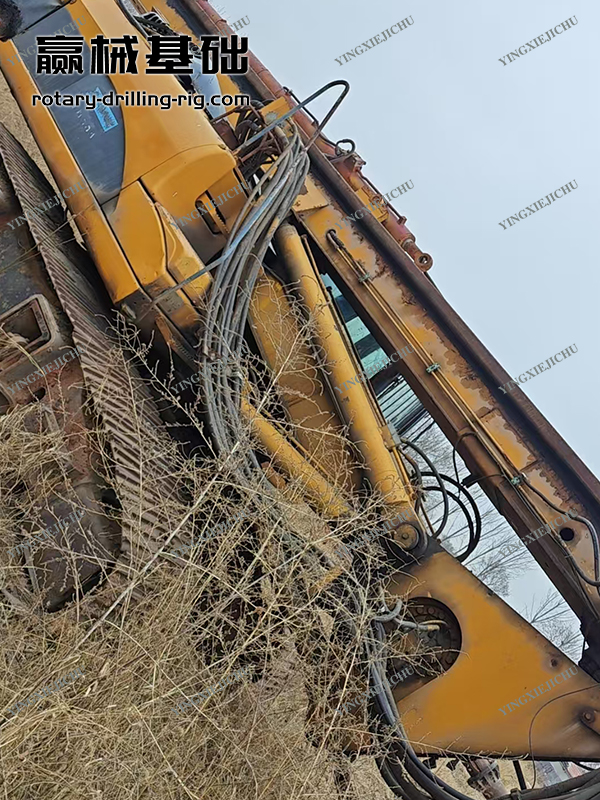

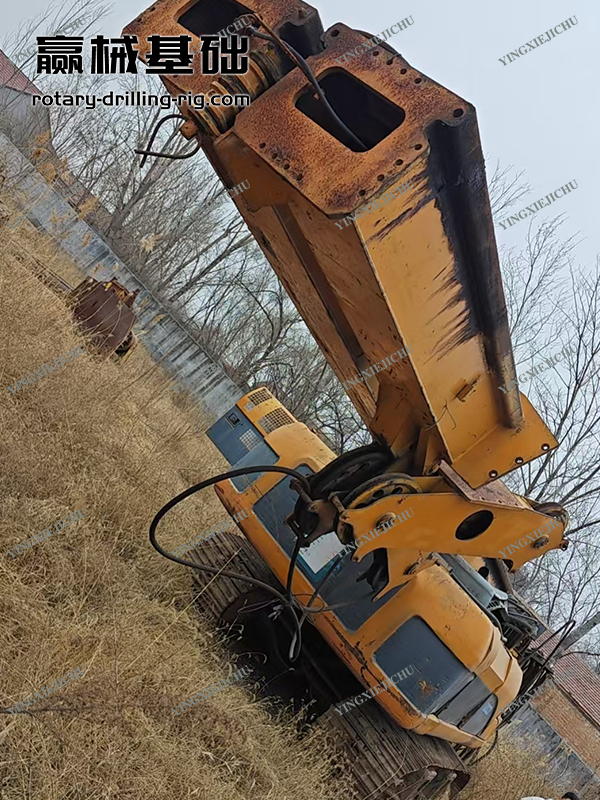

Parallelograms with variable amplitude and box shaped mast, strong resistance to torsion and bending, good drilling verticality, and minimal shaking.
The front single row rope main winch has a long service life, low failure rate, and low operating cost for the steel wire rope.
The key hydraulic components (main pump, main valve, motor) are mostly international brands, with a system pressure of 35MPa, fast response, and long service life.
Intelligent electronic control, efficient operation
CAN bus+intelligent electronic control: automatic detection/display/alarm of drilling depth and verticality, one click automatic reset, more precise operation.
Multi speed power head control, suitable for various working methods such as dry drilling, wet drilling, long spiral, impact, etc.
Electronic monitoring+fault diagnosis+GPS remote management, the status is clear at a glance, and maintenance is more worry free.
Convenient transition and low overall cost
The whole machine weighs about 58 tons, with compact transportation dimensions (14.3m in length, 3.0m in width, and 3.3m in height), no need for large transportation permits, fast transfer, and low cost.
Standard centralized lubrication, with few maintenance points, long maintenance cycles, and low maintenance costs.
Multi purpose: Suitable for rotary drills, long spirals, cylindrical drills, continuous wall grabs, etc., with fast investment returns.
Safe and comfortable, humanized design

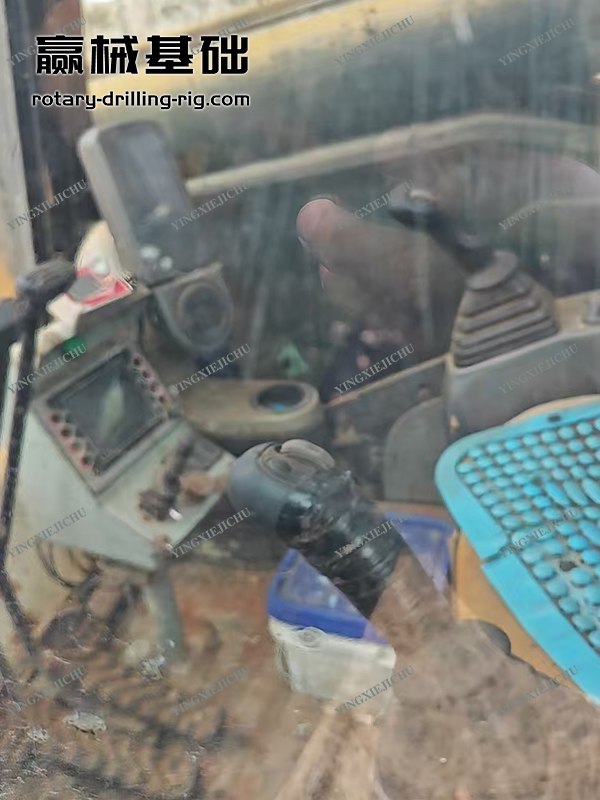

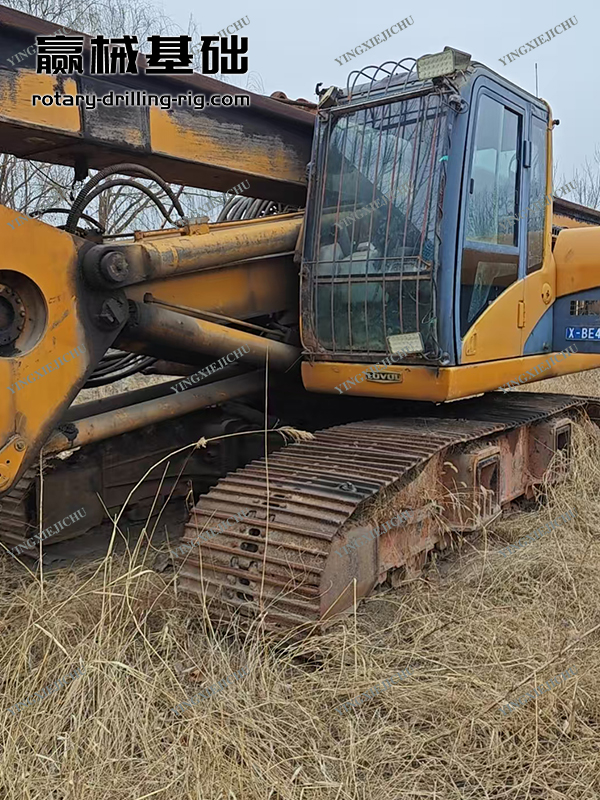

The cab is equipped with shock absorption, noise reduction, and air conditioning for heating and cooling, providing a wide field of view and reducing fatigue during long-term operations.
Multiple safety protections: mast anti tilt, winch limit, overload protection, emergency stop, safer construction.
2、 Highlights compared to the same level (180kN · m)
Power and Stratum: The torque/pressure is in the upper middle range, and the performance in hard rock and gravel layers is better than most domestic models of the same level.
Transition and Size: Scalable chassis+compact transport size, with stronger adaptability on urban, mountainous, and rural roads.
Cost effectiveness: The configuration is close to international brands, the price is more affordable, the after-sales network coverage is wide, and the response is fast.
3、 Applicable scenarios
Building construction, municipal engineering, high-speed rail/highway, bridge pile foundation (diameter 0.8-1.8m, depth ≤ 60m).
Complex geology: pebbles, weathered rocks, hard clay, backfill soil, etc.
Projects with frequent transitions, tight schedules, and high requirements for drilling quality and efficiency.
