| Quantity: | |
|---|---|

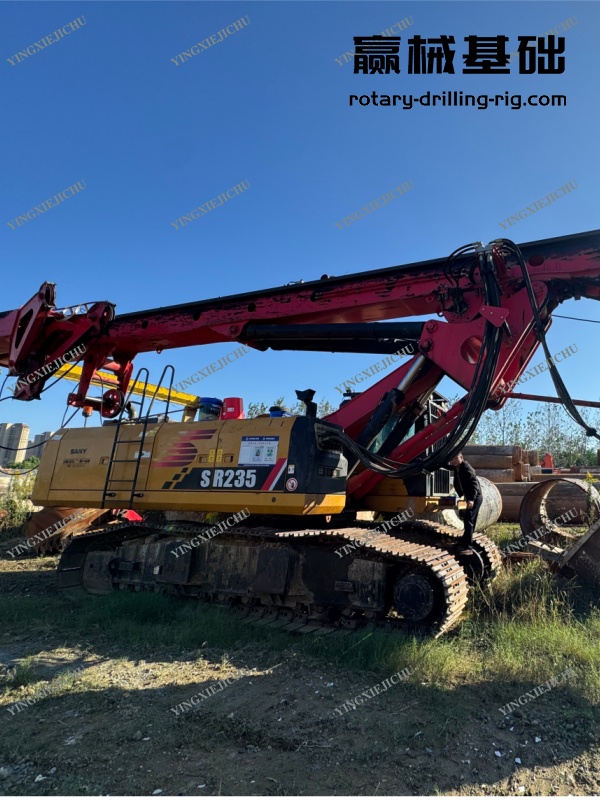

SR235S
SANY
| Parameter Category | Specifications |
|---|---|
| Drilling Performance | Max. Drilling Diameter: 2000 mm Max. Drilling Depth: 68m (Miller杆) / 54m (In-line杆) |
| Rotary Head | Rated Output Torque: 235 kN·m Speed Range: 5 ~ 32 rpm |
| Feed/Pull-out System | Max. Feed Force: 210 kN Max. Pull-out Force: 270 kN |
| Main Winch | Max. Hoisting Force: 235 kN Max. Speed: 70 m/min |
| Engine | Model: ISUZU 6UZ1 Rated Power: 257 kW |
| General Parameters | Operating Weight: 81 t Transport Dimensions (L×W×H): 22870×3540×3660 mm |
Beyond the basic parameters, the SR235-S incorporates a series of innovative technologies that form its core competitiveness:
Intelligent Power Optimization: It adopts power optimization control technology, dynamically distributing power based on real-time working conditions. This not only ensures rapid response but also achieves high fuel efficiency, with comprehensive energy savings of 10% to 15%.
Efficient Winch System: The main winch offers powerful hoisting force. Furthermore, its innovative wire rope pre-tensioning technology effectively prevents rope disorder and twisting, extending the service life of the wire rope.

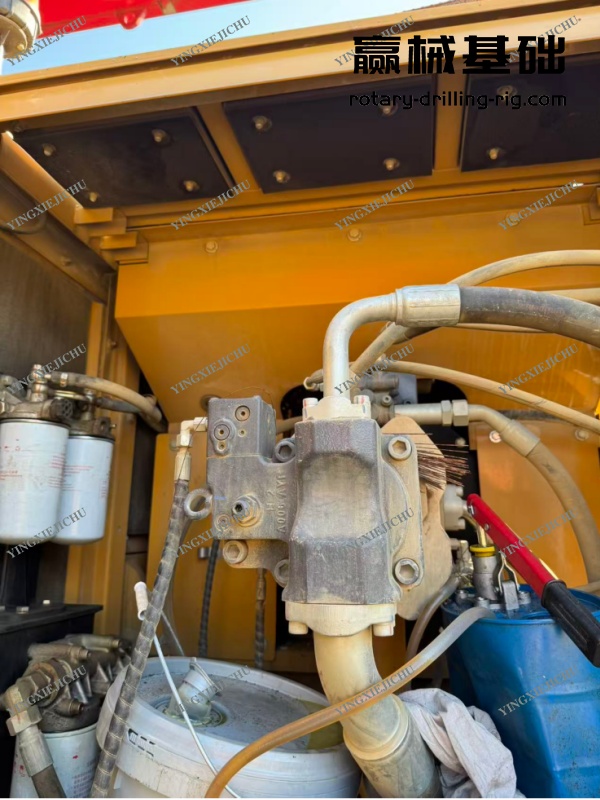

Electronically Controlled Hydraulic System: Matched with a large displacement electronically controlled motor and a dedicated gearbox, it delivers high torque output while also achieving high rotational speeds, meeting the demands of operations like rapid soil dumping and improving construction efficiency.
Convenient Operation & Maintenance: The model introduces RFID (Radio-Frequency Identification) technology, which can display the real-time position of the rotary head pressure pad, greatly facilitating the operator in locating it and enhancing operational efficiency.
Strong adaptability: it has an ultra long pressure stroke of 15m, moderate pressure and lifting force, and is suitable for long pile casing construction under complex geological conditions such as mudflat, pebble, backfill stratum, etc. The torque and speed of the power head can be adjusted to meet the needs of different geological conditions and construction processes.
Convenient and intelligent operation: equipped with high-definition touch screen display, 3-millisecond refresh rate, smooth animation display, and clear operation information at a glance. Some models also have the Yiweixun mobile exclusive APP, which can remotely monitor device location, efficiency, fuel consumption and other information, and provide one click service for easy device management and maintenance.
High reliability: The machine lock rod wire rope is wrapped in a single layer and equipped with wire rope pre tensioning technology to avoid rope disorder and twisting, extending its service life. At the same time, the drilling rig adopts a centralized automatic lubrication system, which provides timed and quantitative lubrication to reduce component wear and improve equipment reliability and durability.
Good safety: Equipped with an integrated platform with handrails and a rear ladder, it is convenient for operators to enter the cab and carry out safety maintenance work. In addition, there are devices such as LED work lights, rearview safety cameras, and reverse alarms to improve safety during the operation process.
