As a professional supplier of used rotary drilling rigs, we fully understand that what customers fear most when purchasing second-hand equipment is not ageing machinery itself, but construction shutdowns, rework, safety accidents and exorbitant maintenance costs caused by hidden structural faults. Among all working assemblies of a drilling rig, the kelly bar is the core load-bearing component that continuously bears torque, crowd force, impact and torsion. It is also the most easily overlooked yet failure-prone part on second-hand rigs.
Hole deviation, hole collapse, drilling vibration, abnormal bar noise, jamming during extension/retraction, wear of drive keys, and even bar fracture or dropping on construction sites mostly stem from uninspected wear, uncorrected deformation and untreated fatigue cracks on kelly bars in prior service. For this reason, we integrate comprehensive kelly bar inspection and standardized refurbishment into our core free value-added services. Every unit undergoes full refurbishment and testing before delivery to eliminate hidden hazards on site. Customers can put the rigs under full-load operation immediately after handover, avoiding subsequent maintenance risks and cutting construction costs.
This article elaborates our complete inspection items, maintenance standards and refurbishment procedures for telescopic kelly bars of used rotary drilling rigs. Unlike most ordinary dealers who only conduct superficial visual checks and leave defects unaddressed, we implement itemised testing, data benchmarking, full hazard elimination and post-repair pressure testing & acceptance.
Kelly bars for rotary drills are high-strength fatigue components operating under complex stratum conditions, impact loads and cyclic crowding-torsion forces. Second-hand bars commonly suffer from hidden defects including excessive drive key wear, oversize fit clearances, bar bending, fatigue cracks, aged weld beads, telescopic jamming and collapsed crowd bearing platforms. Conventional pre-purchase inspections only detect visible surface damage and fail to identify internal fatigue damage, frequently triggering sudden breakdowns on site.
By completing full inspection and refurbishment in advance, we deliver a "structural physical examination and reinforced restoration" for every used rig, delivering three core benefits:
Eliminate construction safety hazards
Guarantee verticality of bored holes
Extend the service life of kelly bars significantly Ultimately maximising the cost performance of equipment for our clients.
We adopt a four-dimensional inspection system consisting of visual examination, precision measurement, flaw detection and telescopic operation testing in line with industrial standards. Each bar section is disassembled and inspected thoroughly with all test data archived for transparent equipment condition traceability.

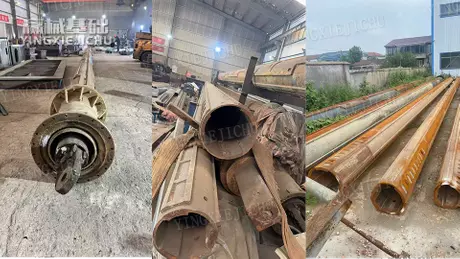

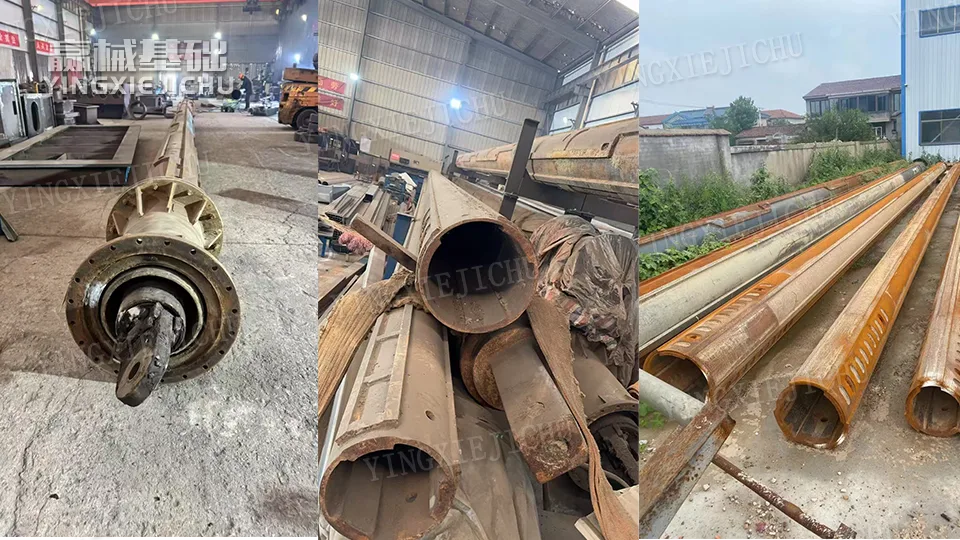

All bar sections are disassembled, cleaned of mud and rust for full-scope inspection focusing on fatigue damage and structural defects:
Base material inspection: Check for prominent dents, deep scratches, rust peeling and plastic deformation on bar bodies, with special focus on stress-concentrated high/low edge zones. Scratches and dents deeper than 2 mm are marked for remediation to prevent crack propagation caused by stress concentration.
Targeted crack detection: High-intensity visual inspection combined with ultrasonic flaw detection screens high-risk areas including bar bodies, joint transition sections, weld zones and drive key weld beads to accurately identify quenching cracks, fatigue cracks and tiny welding cracks. No bar with cracks will be delivered.
Weld bead inspection: Examine factory welds and secondary repair welds for slag inclusion, blowholes, incomplete penetration, cracking, detachment and detached drive key welds – major root causes of bar fracture during drilling.
Bent bars and excessive coaxiality deviation are primary triggers for hole inclination, positional offset, rig vibration and accelerated drive key wear, common flaws on used equipment. We utilise professional tools for precise measurement and straightening:
Measure straightness of individual sections and overall coaxiality strictly. The allowable coaxiality error is controlled within ≤0.3 mm per metre. Any bar exceeding the tolerance will be straightened before delivery; defective units will never be handed over.
Prioritise deformation and offset checks on top and bottom bar joints to avoid abnormal assembly clearances and telescopic jamming caused by joint misalignment.
Rotary kelly bars transmit torque via drive keys. Worn, bulged, burred or over-cleared drive keys lead to power slippage, insufficient torque transfer and low drilling efficiency, and may cause bar sticking or lifting accidents in severe cases – making this the top priority of our inspection.
Inspect working surfaces of inner and outer drive keys for wear, extrusion bulges, edge burrs, edge gnawing and scuffing. Extrusion burrs typically emerge after roughly 100 working hours and require timely grinding to prevent hole deviation and bar lifting faults.
Measure fit clearances between drive keys and keyways to identify excessive gaps and loose play, which result in drilling vibration and unstable torque transmission.
Inspect welds securing drive keys for detachment, cracks and looseness. All repairs follow industrial maintenance specifications; random one-sided welding is prohibited to ensure uniform load distribution.
Crowd bearing platform check: Inspect each section’s root crowd platform for wear, collapse, edge chipping and extrusion deformation. Failed crowd platforms cause crowd slippage, poor penetration and insufficient drilling thrust.
Joint & positioning stop check: Examine male/female joints and locating stops for wear, impact damage and deformation, and eliminate assembly looseness to ensure tight fitting and accurate centring between bar sections.
Thread inspection: Detailed high-light examination of connecting threads to detect tooth breakage, burrs, wear, rust and deformation. Damaged threads lead to loose connections and bar detachment on site.
Upon completion of static inspections, full rig dynamic testing simulates real drilling conditions:
Full-stroke testing of bar extension and retraction to detect jamming, abnormal noise, incomplete retraction and asynchronous movement.
Test full cycles of rotation, crowding and lifting driven by the rotary head, checking for vibration, wobble, abnormal noise and torque slippage.
Verify proper fit tightness between inner and outer bars, eliminating excessive wobble at high rotation speeds and abnormal idle play.
Remove expired old grease and sediment; inspect lubrication passages for blockages at grease nipples and clogged oil lines.
Check integrity of wear sleeves, limit structures and dust-proof assemblies to stop sediment intrusion into fit clearances that accelerates component wear.
No detected defects are overlooked or covered up. All repairs adopt standard construction machinery refurbishment techniques. Repairable defects undergo precise remediation, while components reaching scrappage criteria are replaced with new ones to ensure delivered kelly bars meet premium operational standards.
Slightly bent bars undergo cold straightening via dedicated straightening equipment to restore compliant straightness and coaxiality.
Grind shallow scratches and dents smooth, followed by rust removal, anti-corrosion treatment and repainting to eliminate stress concentration and rust expansion.
Tiny fatigue cracks identified via flaw detection are fully root-removed, re-welded, ground smooth and re-inspected by flaw detection to completely eliminate crack hazards.
Grind bulged, burred and scuffed drive key surfaces smooth for seamless sliding and uniform contact, resolving bar lifting and jamming issues.
Slightly worn drive keys receive standard build-up welding and precision grinding, adhering to synchronous welding on all three keys to balance load distribution; uneven one-sided welding is forbidden.
Drive keys with excessive wear, severe deformation, cracking or detached welds are fully replaced with brand-new parts to eradicate torque slippage and unstable power transfer.
Calibrate fit clearances section by section to maintain industry-standard play, balancing smooth telescopic movement and drilling stability.
Build-up weld and mill worn, collapsed crowd bearing platforms flat to restore load-bearing surfaces for stable crowd thrust and consistent penetration rates.
Repair impact damage and deformed joints, with precision finishing of positioning stop mating surfaces for tight inter-section connection and precise alignment.
Touch up lightly damaged threads by clearing burrs and reshaping tooth profiles; joints with severe thread damage are replaced as full assemblies to eliminate on-site bar detachment risks.
Fully disassemble and clean every bar section to remove internal sludge, sediment and metal filings, and unclog all lubrication passages.
Refill high-temperature wear-resistant grease suitable for working conditions, evenly applied on drive keys, telescopic mating surfaces and joints for smooth extension/retraction and reduced abrasion.
Repair or replace damaged dust-proof and wear-resistant accessories, with full rust removal and anti-corrosion coating to boost corrosion resistance and service life of kelly bars.
A closed-loop acceptance process is implemented after all refurbishment work; no unit is delivered until all indicators pass standards:
Full-stroke idle telescopic test: No jamming, abnormal noise or incomplete travel.
Low & high-speed rotary head test: No excessive wobble, vibration or abnormal sound.
Simulated crowd drilling test: Stable torque transmission without slippage or wobble, meeting hole verticality standards.
Re-inspection of all weld beads, fit clearances, straightness and coaxiality to comply with industrial drilling specifications.
Most second-hand rotary rig traders only conduct superficial cleaning without disassembly, flaw detection, straightening or formal maintenance. Customers frequently face bar fracture, jamming, hole deviation and frequent breakdowns after purchase, resulting in construction delays and elevated costs. Our dedicated kelly bar service delivers distinct competitive strengths:
Pre-emptive hazard screening: Full disassembly, precision measurement and flaw detection before delivery eliminate hidden fatigue faults at source, mitigating site safety risks and work stoppages.
Standardised refurbishment craftsmanship: Strict adherence to industrial maintenance protocols for regulated welding, straightening and clearance adjustment; shoddy temporary fixes are rejected to guarantee long-term stable equipment operation.
Full transparency & zero compromise: Repairable defects receive meticulous restoration; components failing service thresholds are mandatorily replaced. No rig with unresolved hazards leaves our warehouse, upholding strict quality standards.
Ready-for-delivery operation without extra commissioning: Customers can deploy rigs directly to construction sites without additional on-site refurbishment, saving maintenance time and expenditure.

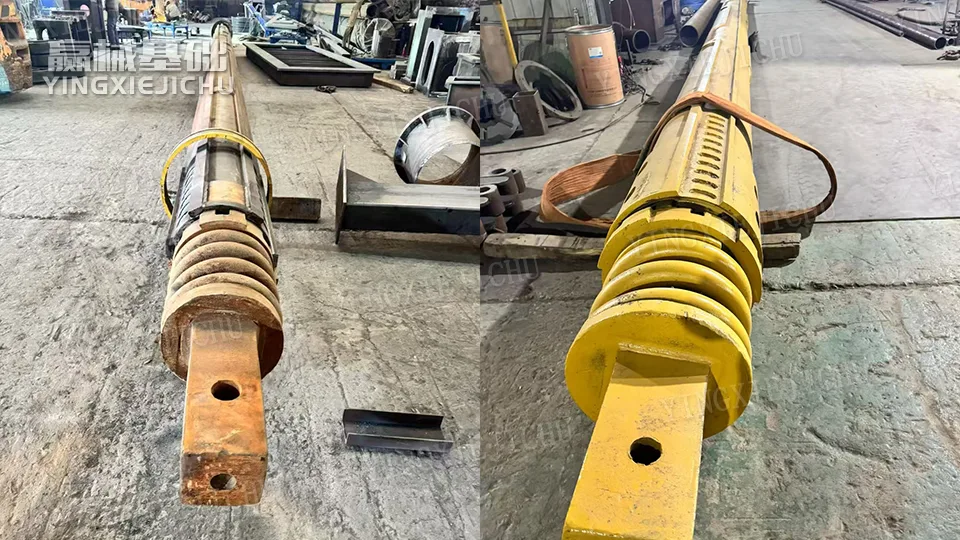

Comparison before and after drill pipe maintenance
The true cost performance of a second-hand rotary drilling rig lies not merely in a lower purchase price, but fewer breakdowns, stable construction schedules, reduced maintenance expenses and superior operational safety. As the core load-bearing component for pile foundation construction, the operational stability of a kelly bar directly determines construction quality and efficiency.
We persist in offering dedicated kelly bar inspection and refurbishment as a free value-added service. Supported by rigorous, comprehensive refurbishment standards, we safeguard every used rotary drilling rig sold by our company. We are more than just an equipment supplier – we act as your long-term partner for construction machinery maintenance. Every purchase with us delivers complete peace of mind, reliable equipment and seamless construction progress.
