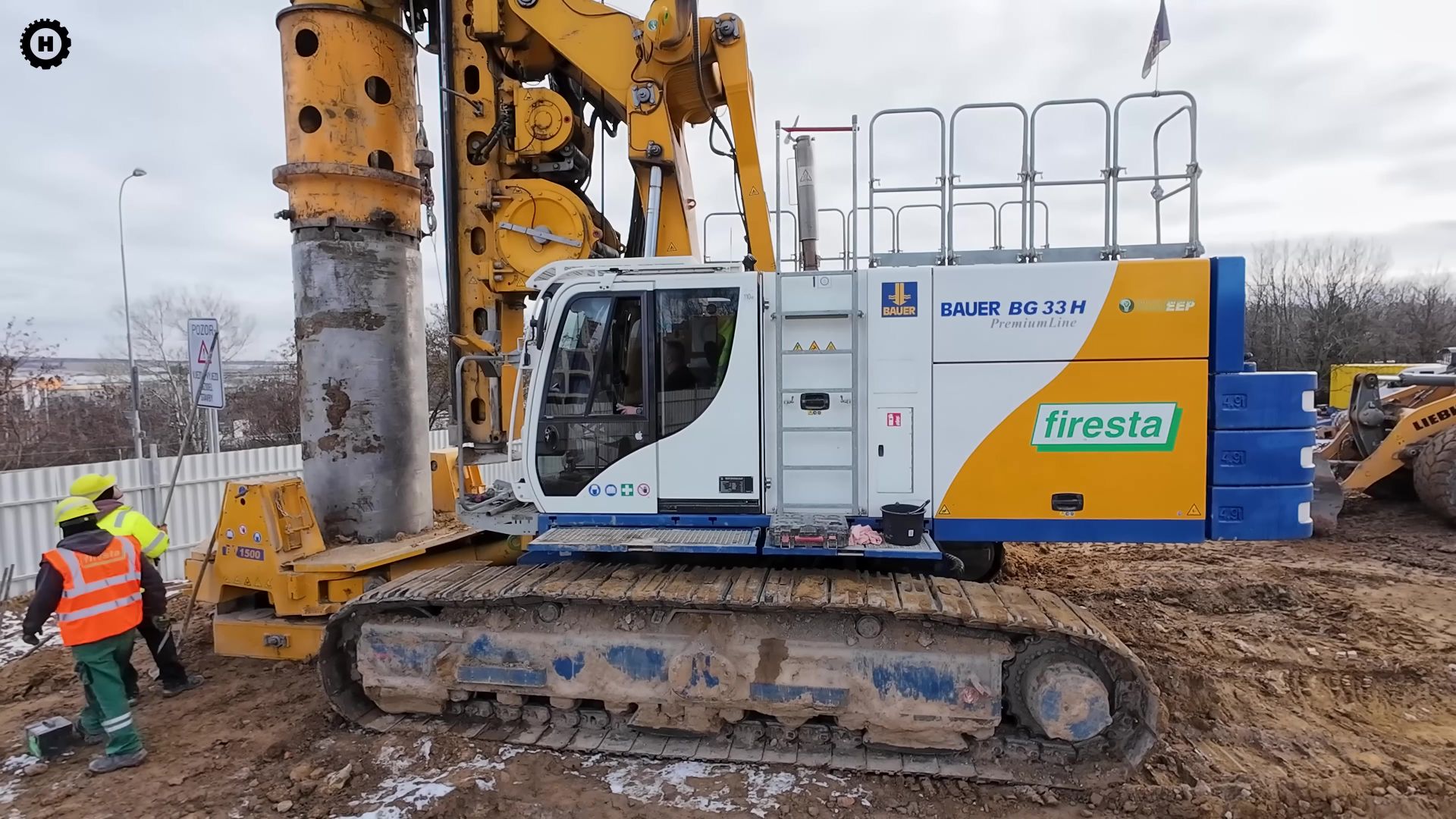

The rotary drilling rig is a core piece of equipment in pile foundation construction, capable of adapting to various geological conditions with its efficient hole-forming capability. Its stable operation relies on the coordinated functioning of key components. The following provides a concise analysis of its core "structural framework" and functions, focusing on key components while balancing professionalism and comprehensibility.
I. Chassis: The "weight-bearing cornerstone" of the entire machine
The chassis is the core of the rotary drilling rig's load-bearing and mobility, primarily divided into two types: crawler and wheel. Among these, the crawler type is widely used in various construction sites due to its large ground contact area and strong stability. Its main functions include supporting the machine's weight, working devices, and construction loads, while enabling whole-machine movement and steering through hydraulic drive. This ensures the rig can flexibly adjust its position within the construction area, providing stable support for borehole operations and preventing tilting or displacement during work.
II. Upper Body: The "Command Center" of Operations
The upper body serves as the control and power core of the rotary drilling rig, integrating key components such as the cab, power system, and hydraulic system. The cab is equipped with an operation console, dashboard, and safety protection devices, enabling operators to precisely control the movements of various components and monitor real-time operational parameters. The power system primarily utilizes diesel engines to provide ample power for the entire machine's operations, driving the hydraulic pump, drill rods, and other components. The hydraulic system acts as the "power transmission link," controlling the extension, rotation, and braking of various mechanisms to ensure precise and smooth movements.
III. Drilling Rod: The "Extended Arm" for Hole Formation
The drill pipe is the core component connecting the upper vehicle body to the drill bit, featuring a multi-section telescopic structure. It must be made of high-strength, wear-resistant material to meet the requirements of deep drilling. Its primary function is to transmit power, transferring the torque and pressure from the upper vehicle body to the drill bit, which drives the rotation and cutting of soil and rock layers. Additionally, it adjusts drilling depth through telescoping to accommodate varying pile foundation depth requirements. After completion, it can be contracted section by section for easy equipment relocation.
IV. Drill bit: The "core tool" for breaking through soil
The drill bit is the component that directly contacts the soil and rock layers, and can be categorized into various types such as spiral drill bits, bucket drill bits, and rock drill bits based on geological conditions. Its core function is to complete borehole operations through rotational cutting, soil excavation, or rock layer fragmentation—spiral drill bits are suitable for loose soil layers, where the spiral blades remove soil from the borehole; bucket drill bits can excavate cohesive soil, sand layers, and more, improving excavation efficiency; rock drill bits are equipped with wear-resistant alloy teeth, capable of breaking hard rock layers, making them suitable for complex geological construction.
V. Luffing Mechanism and Boom: The "Angle Adjuster" for Operations
The luffing mechanism and the mast work in synergy to ensure the vertical accuracy and operational angle adjustment of the drill rod. The mast serves as the support carrier for the drill rod, featuring a vertical structure that can be raised, lowered, and tilted via the luffing mechanism to adjust the drilling angle. Additionally, the mast is equipped with a guidance device to maintain the vertical stability of the drill rod during drilling, preventing borehole deviation and improving hole formation quality. The luffing mechanism is hydraulically driven, bearing the weight of the mast and drill rod while enabling flexible adjustment of the operational posture.
In summary, the key components of the rotary drilling rig are clearly divided in function yet work in coordinated synergy. The chassis ensures stable movement, while the upper body provides power and control. The drill rod and bit accomplish core hole formation, and the luffing mechanism along with the mast ensure operational precision, collectively supporting the efficient completion of various pile foundation construction tasks.
